AMS PERFORMANCE R8/HURACAN ALPHA FUEL SYSTEM – FUEL PRESSURE REGULATOR + FUEL LINE KIT

The Alpha Fuel System's Fuel Pressure Regulator and Fuel Line Kit bridges the gap between the fuel pump setup and the engine's fuel rail kit. Unlike conventional systems, it establishes a returnless, deadhead routing to the port injection fuel rails, ensuring consistent fuel pressure regardless of power output. Engineered by our AMS Snailworks® Team, it includes an in-line 6 micron glass fuel filter for enhanced fuel purification prior to engine entry.

• FULL ALPHA FUEL SYSTEM SUPPORTS 2400+ HP OF FUEL DELIVERY ON GASOLINE AND 1600+ HP ON E85
• ALL MATERIALS AND COMPONENTS ARE FULLY ETHANOL AND METHANOL COMPATIBLE

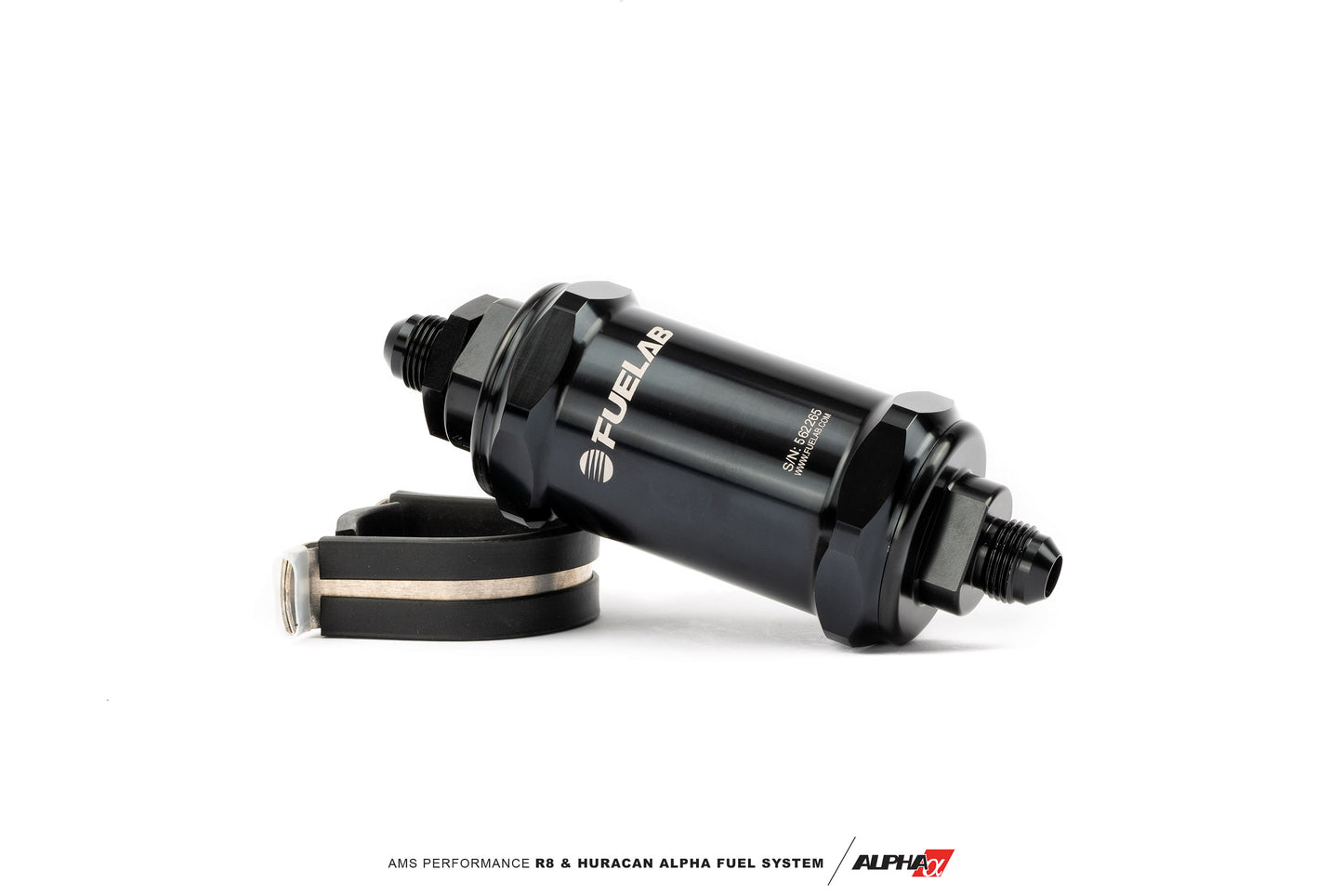

• FUELAB BILLET ALUMINUM INLINE FUEL FILTER HOUSING WITH INTEGRATED CHECK VALVE AND 6 MICRON GLASS FILTER
• FAST ENGINE START UP DUE TO MAINTAINED FUEL PRESSURE AFTER SHUTDOWN

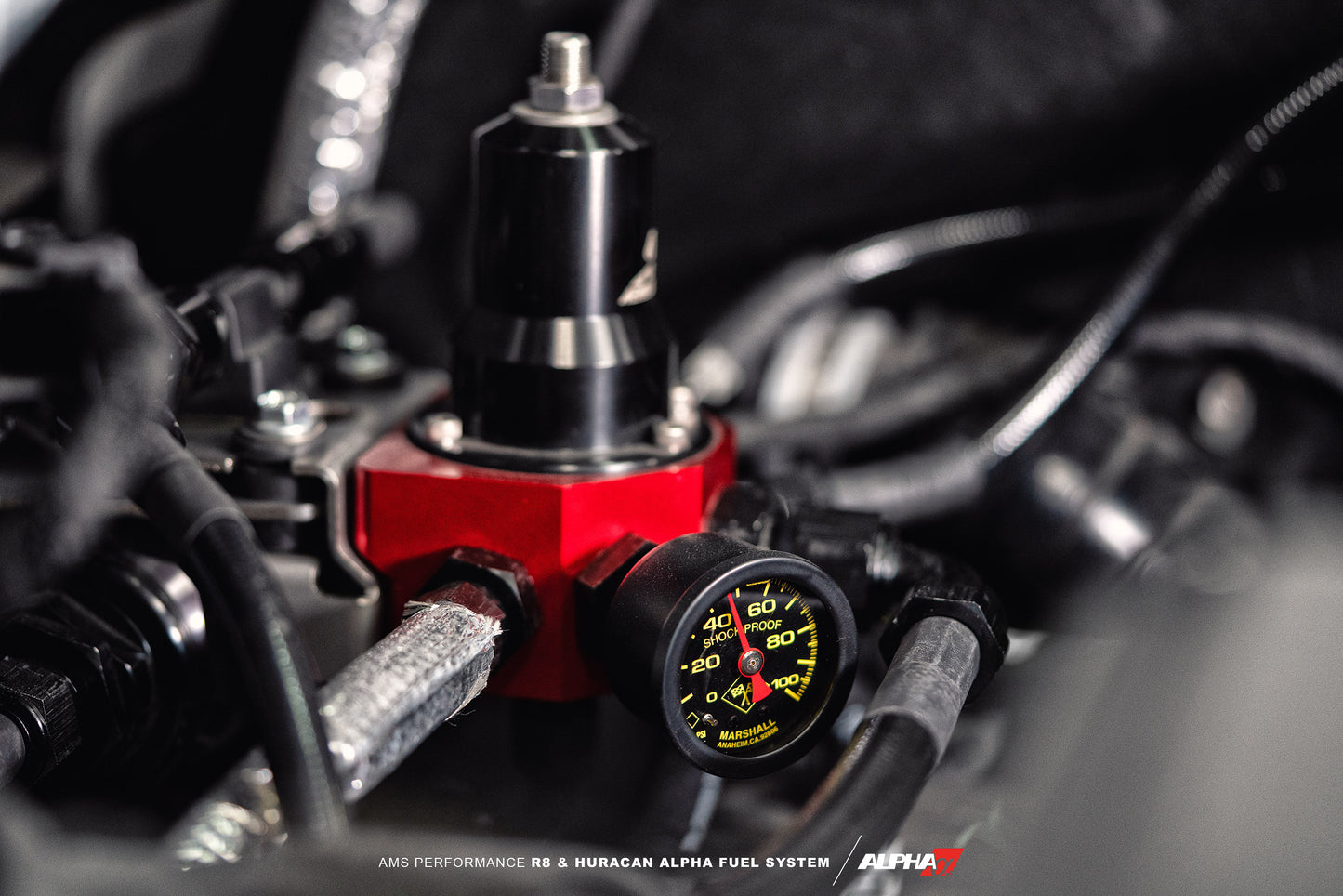

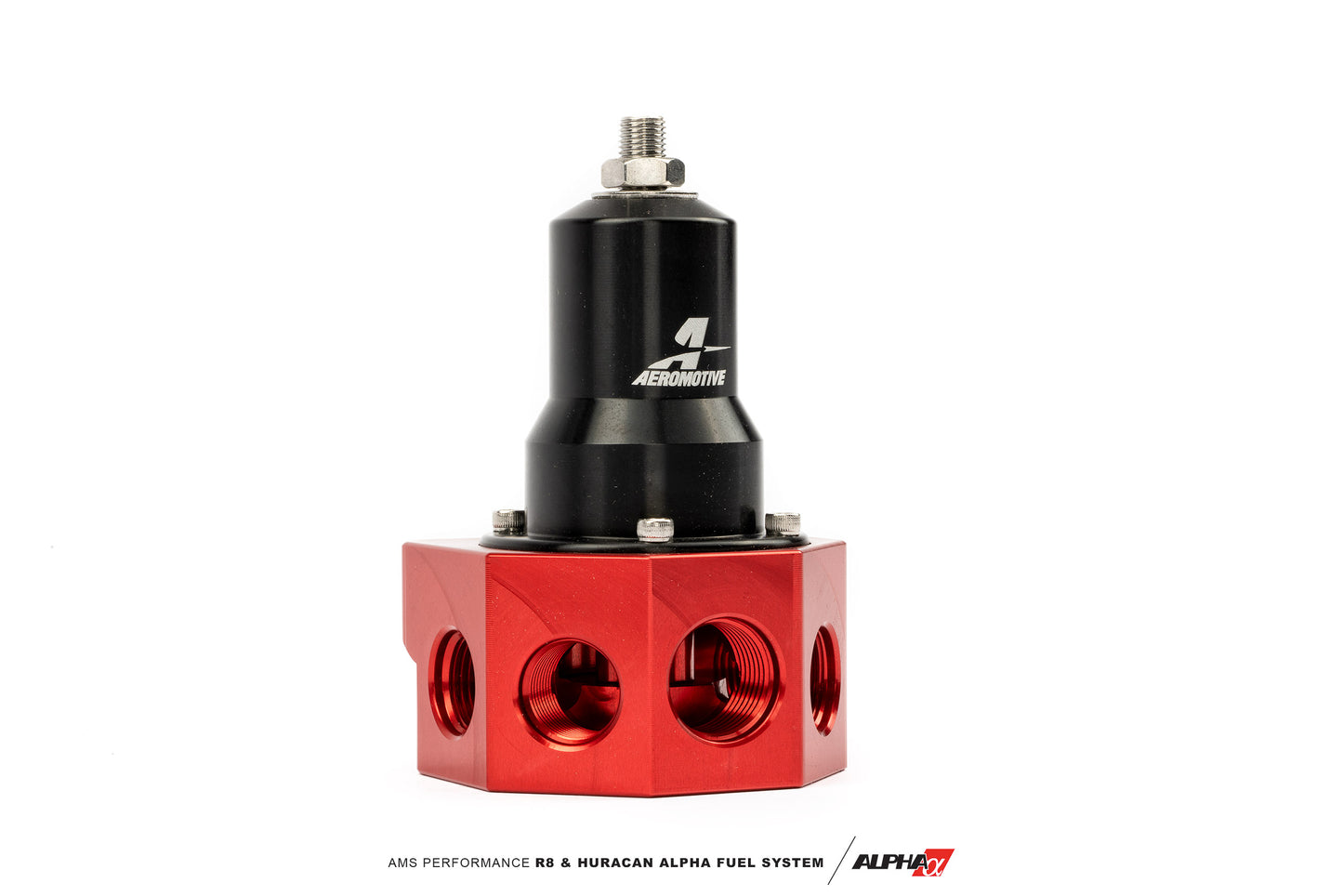

• AEROMOTIVE EXTREME FLOW FUEL PRESSURE REGULATOR AND 100 PSI MARSHALL FUEL PRESSURE GAUGE
• MULTIPLE PORTS ON FPR AVAILABLE FOR CUSTOM PLUMBED FUEL SYSTEM OPTIONS
• REGULATOR MOUNTING BRACKET WITH RUBBER ISOLATOR BUSHINGS FOR QUIET OPERATION
• USES RACE-GRADE AN FITTINGS AND ALUMINUM QUICK CONNECT FITTINGS FOR EASY INSTALL AND LEAK-FREE OPERATION
• SILVER LINE SHEATH FOR IMPROVED HEAT MANAGEMENT
• UTILIZES ALL RACE-GRADE, 2000+ PSI RATED, PTFE LINED HOSE FOR DURABILITY AND FUEL FUME CONTROL

ENGINEERED TO BE THE BEST

As an engineering-focused company, AMS Performance has spent two decades crafting top-tier motorsports aftermarket components. Our meticulous design process incorporates premium materials like CNC machined aerospace grade 6061 T6 billet aluminum for fuel rails, PTFE lined fuel lines, and AN fitting connections. Unlike others, we prioritize durability with high-quality materials over plastic fittings and rubber hoses prone to leaks.

While competitors opt for basic brackets, our AMS Snailworks® Engineering Team crafted a premium two-piece bracket for the fuel pressure regulator. It incorporates five rubber isolator bushings to minimize vibration and noise transfer to the chassis. Additionally, we've included high-end 2000+ PSI rated, PTFE lined fuel lines to prevent gasoline fumes from escaping into the engine bay and storage space. It's our meticulous attention to detail that distinguishes us from the rest.

DELIVERING A COMPLETE SOLUTION WITH THE ALPHA FUEL SYSTEM

The Alpha Fuel System, developed by our AMS Snailworks Engineering Team, offers a modular approach for custom fuel system builds. Comprising four separate subcomponents - Twin Pump Kit, Fuel Pressure Regulator and Fuel Line Kit, Fuel Rail Kit, and optional Flex Fuel Kit Add-on - enthusiasts can tailor their system to their needs. Each subcomponent is designed to seamlessly integrate as part of a complete system.

The Alpha Fuel System reimagines fuel system design to enhance fuel flow, drivability, and user experience. By rerouting and replacing restrictive components, it significantly increases fuel throughput. It also offers OEM-like siphon system functionality, ensuring balanced fuel distribution to both sides of the tank. Unlike other kits with external surge tanks or fuel starvation issues, our system resolves these challenges through advanced engineering.

APPLICATIONS

• 2017-Current Audi R8 Gen 2 (Incl. Plus & Performance models)
• 2015-Current Lamborghini Huracan (Incl. Performante, Evo, & STO models)

PRODUCT NOTES

• The subcomponents of the R8/Huracan Alpha Fuel System are all designed to be used in conjunction with one another. Some custom fitting will be necessary if you are not using the complete Alpha Fuel System.
• Replacement Fuelab filter part number 71804 available separately.

WARNING: By purchasing this fuel system component you confirm that you have read and understand the following: WARNING/DANGER: SERIOUS RISK OF FIRE, EXPLOSION, BODILY INJURY INCLUDING RESULTING DEATH, AND ENGINE, VEHICLE, AND OTHER PROPERTY DAMAGE. THIS FLEX FUEL KIT MUST BE INSTALLED AND REMOVED ONLY BY A QUALIFIED MOTOR SPORTS TECHNICIAN. THE TECHNICIAN ALSO MUST BE TRAINED IN HOW TO INSTALL AND REMOVE THIS KIT FROM THIS SPECIFIC VEHICLE. THE TECHNICIAN MUST NOT PARTICIPATE IN ANY ACTIVITY THAT WOULD BE CONSIDERED A CATALYST FOR IGNITION WHILE INSTALLING OR REMOVING THIS KIT AND MUST READ THE INSTALLATION INSTRUCTIONS BEFORE INSTALLATION OR REMOVAL.
